Wet pan Gold grinding machine,Ball mill gold grinding machine

FOB Reference Price:Get Latest Price
US $5,000-60,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Power(W):
18.5-260KW
Capacity(t/h):
Depend on ball mill model
Place of Origin:
Henan, China (Mainland)
Brand Name:
YIGONG
Model Number:
Diameter by length
Dimension(L*W*H):
many sizes
Weight:
Depend on model
Certification:
ISO,BV,SGS
ball mill liner:
rubber or Mn-stell
reducer:
include
stage:
one or two
balls:
MN-steel
input size:
small than 25mm
output size:
changeable
color:
customized
motor:
include of ball mill
speed:
depend on model
power:
18.5-500KW
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 year
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
normal,small parts in carton.
Port
Qingdao/Shanghai
Lead Time :
15-25 days

Wet pan Gold grinding machine,Ball mill gold grinding machine



Product Introduction

1.Ball mill is mainly used for grinding materials in such production industries as cement, silicate product, new building materials, corhart, chemical engineering, nonferrous and black metal, mineral processing, glass and ceramic, etc.

2.It is used for grinding various ore and other grindable materials dry or wet.


Structure of Energy saving ball mill grinding media ball from YIGONG machinery

1.Ball mill mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on.

2.The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance.



Working Principle of Energy saving ball mill grinding media ball from YIGONG machinery

1.The ball mill is a horizontal rotating device transmitted by the outer gear.

2.The materials are transferred to the grinding chamber through the quill shaft uniformly.

3.There are ladder liner and ripple liner and different specifications of steel balls in the chamber.

4.The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.



Technical Data of the Ball Mill

Model

Speed of bucket(r/min)

Weight of ball(t)

Size of feed opening(mm)

size of outputting feed(mm)

Production(t/h)

Power(Kw)

Weight(t)

900*1800

38

1.5

20

0.075-0.89

0.65-2

18.5

3.6

900*3000

38

2.7

20

0.075-0.89

1.1-3.5

22

4.5

1200*2400

32

3.8

25

0.075-0.6

1.5-4.8

45

11.5

1200*3000

32

5

25

0.075-0.4

1.6-5

45

12.8

1200*4500

32

7

25

0.075-0.4

1.6-5.8

55

13.8

1500*3000

27

8

25

0.075-0.4

2-5

90

17

1500*4500

27

14

25

0.075-0.4

3-6

110

21

1500*5700

27

15

25

0.075-0.4

3.5-6

132

24.7

1830*3000

24

11

25

0.075-0.4

4-10

180

28

1830*6400

24

23

25

0.075-0.4

6.5-15

210

34

1830*87000

24

25

25

0.075-0.4

7.5-17

245

36

2200*5500

21

30

25

0.075-0.4

10-22

370

48.5

2200*6500

21

30

25

0.075-0.4

14-26

280

52.8

2200*7500

21

33

25

0.075-0.4

16-29

475

56

2200*9500

21

38

25

0.074-0.4

18-35

475

62

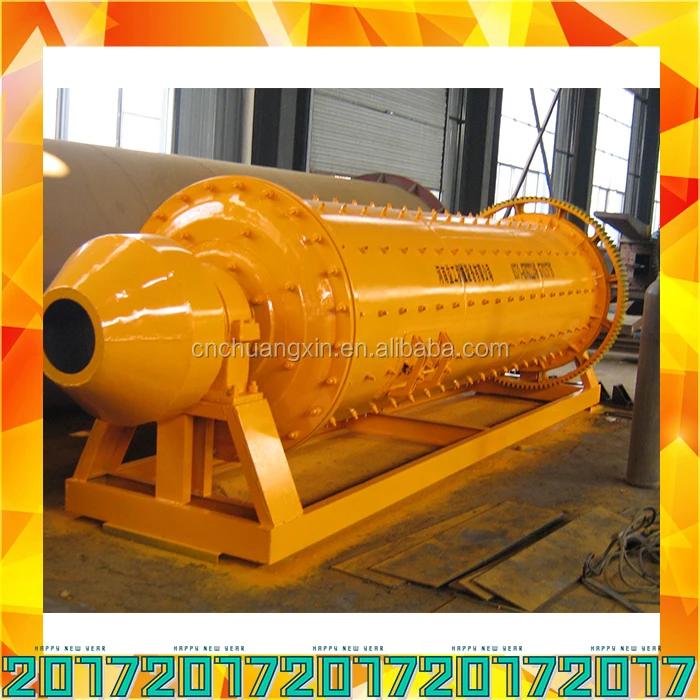

Pictures of Energy saving micron ball mill from YIGONG machinery

Rubber liner of Ball Mill



 Ball Mill two stages



Ball Mill head



Grinding ball
