Henan top brand Stone Crushing and Screening Production Line, Stone Crusher Plant

FOB Reference Price:Get Latest Price
  • >=1 Sets
    US $3000.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Jaw Crusher
Application:
Mining
Motor Type:
according to customer requirement
Power(W):
30kw
Capacity(t/h):
1~120 TPH
Place of Origin:
Henan, China (Mainland)
Brand Name:
HNYG
Model Number:
PE
Dimension(L*W*H):
2600*2500*2200
Weight:
3-25 Tons
Certification:
ISO, CE, ASME
Color:
Yellow
Max feeding size:
800mm
Spare parts supply:
freely
material:
carbon steel
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 Months
Supply Ability
Supply Ability:
120 Set/Sets per Month
Packaging & Delivery
Packaging Details
the stone crushing plant products are packaged into wooden case, which is suitable for long time delivery
Port
Qingdao, Shanghai, Tianjing
Lead Time :
Shipped in 7 days after payment

Henan top brand Stone Crushing and Screening Production Line, Stone Crusher Plant



plant introduction

Crushing production line can be used for hard limestone, granite, basalt, gravel and aggregate of other materials, and artificial sand operation, it is also suitable for water and electricity, building materials, highway, city construction and other industry applications.It is also important for the production and processing of highway pavement material, high grade pavement macadam, high-speed railway passenger dedicated line aggregate, aggregate of hydropower station, crushed stone of port and airport runway and other special field.



Main Equipment

the production line normally Bin, vinrating feeder, jaw crusher, impact crusher or some other types of crushers according to the stone type, vibrating screen, belt conveyor. For different technical requirements, various  combination can be selected,etc .





production process

1>.The raw material is transferred to jaw crusher for primary crushing by vibrating feeder,
2>.Then the crushed materials are transferred to crusher through belt conveyor for secondary crushing.
3>.The materials crushed by the artificial stone production line will be transferred to the vibrating screen.

4>The materials with suitable size will be transferred to sand washing machine,after cleaned in the washer,the sand will be discharged.
5>.In the stone crushing production line , the others with unsuitable size will be screened from vibrating screen, then will be transferred to the sand making machine in the sand production line, this forms a closed circuit manifold cycles.
6>.Sizes of final products will be meet our customers' requirements.





Main capacity




Delivery show

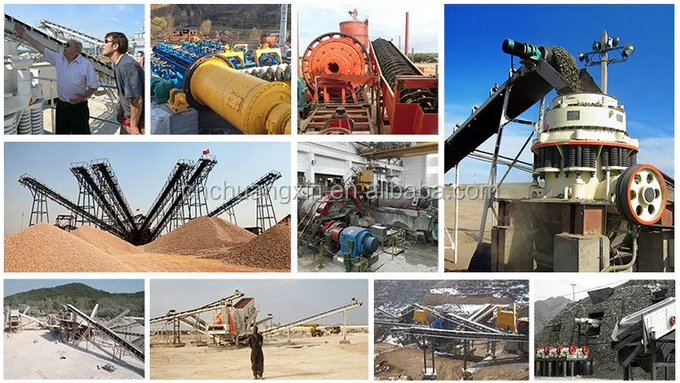

Product show
