30-350TPH mobile concrete crusher plants, aggregate mobile stone crusher price

FOB Reference Price:Get Latest Price
US $50,000-200,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
mobile crusher
Application:
crushing,screening
Motor Type:
AC Motor
Power(W):
50-600kw
Capacity(t/h):
30-500T/H
Place of Origin:
Henan, China (Mainland)
Brand Name:
YIGONG
Model Number:
YM
Dimension(L*W*H):
many sizes
Weight:
depend on mobile crusher model
Certification:
ISO,BV,SGS
Certification of mobile crushing:
ISO9001:2008
using wide:
stone making line,mining area
input size:
340-750mm
Delivery time:
15-45 days
crusher type:
mobile crusher
mobile crusher color:
customized
mobile jaw crusher:
first crusher
mobile impact crusher:
second
capacity:
50-300T/H
output sizes:
two or three or four
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 year
Supply Ability
Supply Ability:
12 Set/Sets per Month
Packaging & Delivery
Packaging Details
main machine naked,small parts in carton
Port
Qingdao/Shanghai
Lead Time :
15 working days



30-350TPH mobile concrete crusher plants, aggregate mobile stone crusher price



Product Introduction

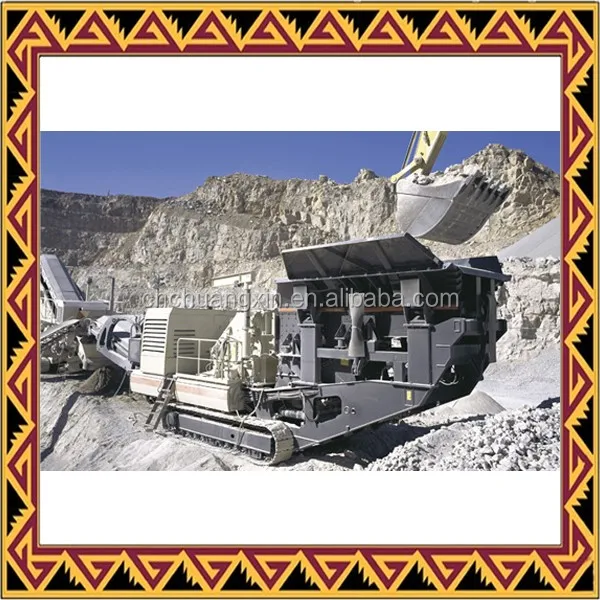

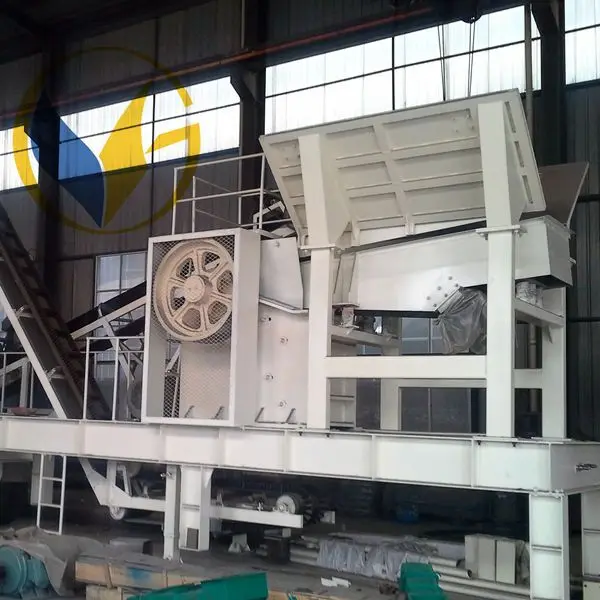

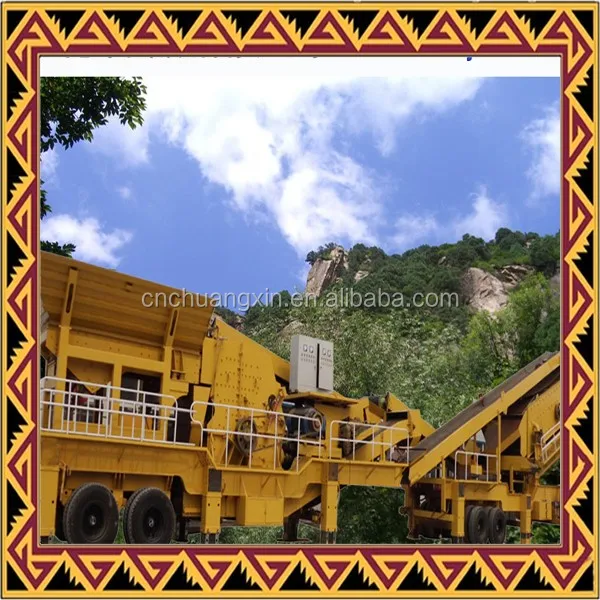

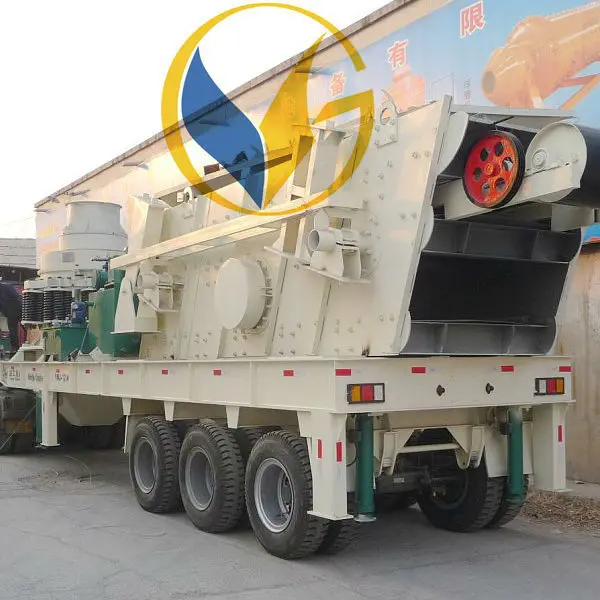

Y Series Mobile Crushing Plant is designed based on the conception of fully adapting various crushing condition, eliminating obstacles caused by location, environment, foundation configuration, consequently providing simple, efficient, low-cost crushing equipment.

The outstanding features of Y series Mobile Crushers:


1.Built with high quality jaw crusher, cone crusher and impact crusher
2. Feeder, screen and belt conveyor on board
3.Tractive steering shaft, convenient for road transportation
4.Integrated with landing gears, quick and convenient installation on site
5.Integrated motor and control panel



Features

1.Y series Mobile crushing plant has high on-board chassis, short wheel base and tight turning radius, which is convenient for road transportation, especially for driving to crushing sites that are difficult to access.

2.The set-up time of the portable crushing plant are greatly reduced, compared with the stationary one.

3.Y series Mobile crushing plants crush the material on site, without transporting the materials for off-site crushing, so the material transportation cost is greatly reduced.

4.Y series portable crushing plants adapt excellent quality crusher, and the belt conveyor can be used for conveyance of material, which is of mature technology, simply operation, easy maintenance, and low investment.

5.We can provide special mobile crushers based on customers' site, material, and particle shape requirements, etc. Such as self-load belt conveyor, multiple machines combined type, single machine type and so on.

Wide applications 2018 new design aggregate mobile crusher with best price from YIGONG
1.According to different customers' requirements, Y series portable crushing plant can be operated as independent units, or as two-stage crushing plant with primary and secondary crushing, or as three-stage crushing plant with primary, secondary, and tertiary crushing.

2.Likewise, Y series portable crushing plant can be easily adjusted to suit the crushing application by choosing feeding to crusher or feeding to screen options.

Technical Parameters

Parameter / Model

YM60

YM75

YM90

YM106

Output(t/h)

40-60t/h

60-100t/h

80-150t/h

150-250t/h

Max. Feeding Size(mm)

340mm

425mm

500mm

630mm

Primary Crushing Unit

Vibrating Feeder

GZD600*1600

GZD600*1600

GZD960*3600

GZD1100*3800

Jaw Crusher

PE400*600

PE500*750

PE600*900

PE750*1060

Belt Conveyor

B500

B500

B650

B800

Moter Power(KW)

37KW

62KW

84.9KW

104.9KW

Secondary Crushing unit

Vibrating Screen

3YK1235

3YK1545

3YK1548

3YK1860

impact crusher

PF1010

PF1210

PF1214

PF1315

Moter power(KW)

60.5KW

125KW

178.5KW

202KW
