HOT SALE 900x3000 BALL MILL

FOB Reference Price:Get Latest Price
US $2,800-8,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Power(W):
22000
Capacity(t/h):
1.1-3
Place of Origin:
Henan, China (Mainland)
Brand Name:
YIGONG
Model Number:
900X3000
Dimension(L*W*H):
Customized
Weight:
5-126t
Certification:
ISO
Warranty:
12 MONTHS
After-sales Service Provided:
Engineers available to service machinery overseas
Ball weight:
2.7 TONS
Color of ball mill:
ANY COULOR
Output size:
0.4-0.027MM
Delivery time:
15 days
Packing:
Nude
Input size:
LESS THAN 20MM
Rotary speed:
38RPM
Ball mill type:
Wet or dry
Motor brand:
any brand
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
ball mill is Nude packed in container.Ball mill would be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden box; the big parts are wrapped by plastic sheeting.
Port
Qingdao/Lianyungang
Lead Time :
10 working days after get the pay



Product Description

 Product Introduction

1.Ball mill is mainly used for grinding materials in such production industries as cement, silicate product, new building materials, corhart, chemical engineering, nonferrous and black metal, mineral processing, glass and ceramic, etc.

2.It is used for grinding various ore and other grindable materials dry or wet.






Structure of Energy saving paint ball mill from YIGONG machinery

1.Ball mill mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on.

2.The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance.



3.The ball mill is a horizontal rotating device transmitted by the outer gear.

4.The materials are transferred to the grinding chamber through the quill shaft uniformly.

5.There are ladder liner and ripple liner and different specifications of steel balls in the chamber.

6.The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.





Technical Data

Model

Speed of bucket(r/min)

Weight of ball(t)

Size of feed opening(mm)

size of outputting feed(mm)

Production(t/h)

Power(Kw)

Weight(t)

900*1800

38

1.5

20

0.075-0.89

0.65-2

18.5

3.6

900*3000

38

2.7

20

0.075-0.89

1.1-3.5

22

4.5

1200*2400

32

3.8

25

0.075-0.6

1.5-4.8

45

11.5

1200*3000

32

5

25

0.075-0.4

1.6-5

45

12.8

1200*4500

32

7

25

0.075-0.4

1.6-5.8

55

13.8

1500*3000

27

8

25

0.075-0.4

2-5

90

17

1500*4500

27

14

25

0.075-0.4

3-6

110

21

1500*5700

27

15

25

0.075-0.4

3.5-6

132

24.7

1830*3000

24

11

25

0.075-0.4

4-10

180

28

1830*6400

24

23

25

0.075-0.4

6.5-15

210

34

1830*87000

24

25

25

0.075-0.4

7.5-17

245

36

2200*5500

21

30

25

0.075-0.4

10-22

370

48.5

2200*6500

21

30

25

0.075-0.4

14-26

280

52.8

2200*7500

21

33

25

0.075-0.4

16-29

475

56

2200*9500

21

38

25

0.074-0.4

18-35

475

62



Pictures of Energy saving paint ball mill from YIGONG machinery

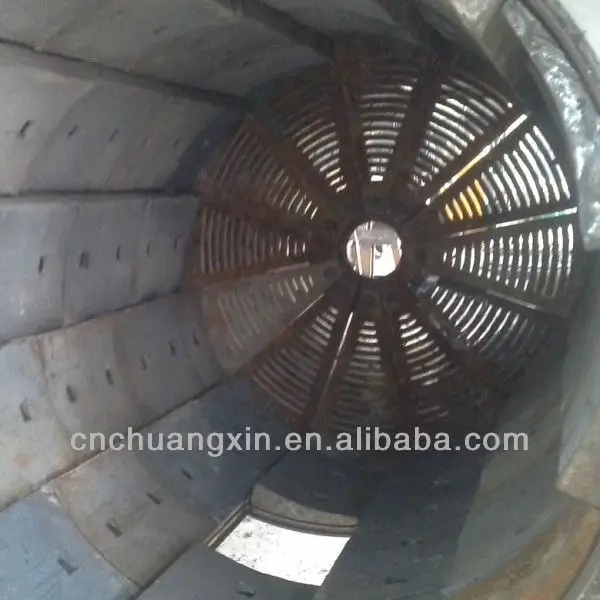

Rubber liner of Ball Mill





 Two Stages of the Ball Mill



The Head of the Ball Mill









Packaging & Shipping



 Small ball mill for sale with the best price and always good quality for Chinese customer and some nearby countries.

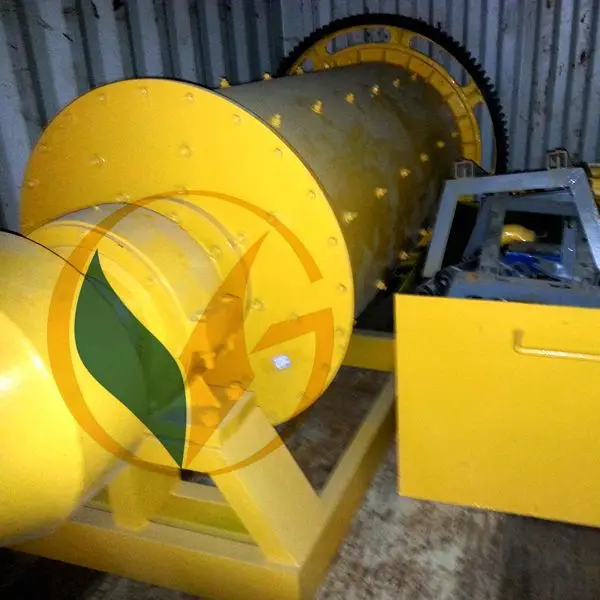

loading containor..









Our Services



  We provide installation service for small ball mill for sale with the best price and always good quality.
